- Hydraulic Driven Drive Axles with Integrated Dynamic/Failsafe Braking Standard
- Reduced Tail Swing and Independent
- Swing Boom

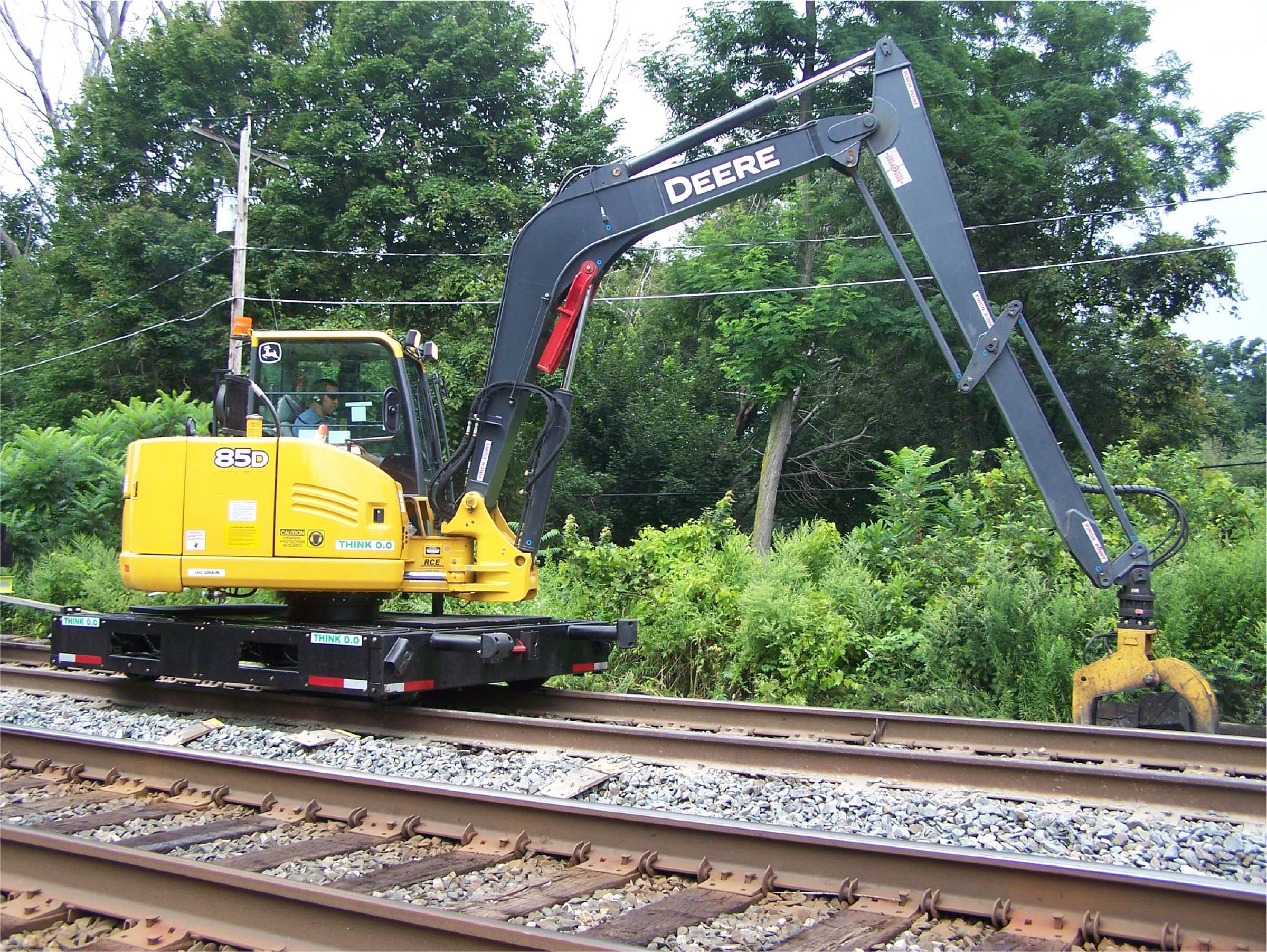

- Tie Crane and Bridge Crane Boom Arm Options
- JD Link Telematics Subscription
- 500 Hr Engine Service Intervals
- Serviceable by the Nationwide John Deere Dealer Network
Key Features
Specifications
STANDARD SPECIFICATIONS
- Yanmar 4TNV98CT
- EPA Final Tier 4/EU Stage IV
- 50.4 kW (67.6 hp) at 2,000 rpm
- 4 Cylinder 3.3 L (202 cu. in.)
- 3 Variable-Displacement Hyd Pumps
- 2 x 72 + 56 L/m (2 x 19) + 15 gpm)
- 24 Volt – 60 Amp Alternator
ADDITIONAL SPECIFICATIONS
- Hydraulically Powered High Rail Gear
- In-Cab Touch Screen Control Center
- Beacon
- 24V to 12V Converter
- Pattern Changer
- Battery Disconnect
- Front & Rear Auxiliary Lights
- Fire Extnguisher
- Remote Oil Drain
- Window Guards
- Camera System (for rail mounting)
- Nonmetallic Soft Pads
Dimensions and Weights
Top Level Specs
Operating Weight
19,720 lbs (without attachments)
Arm Digging Force
ISO 7,936 lbs
Bucket Digging Force
ISO 13,264 lbs
Dimensions – 6’11" Arm
A: Maximum Reach
24'10"
B: Maximum Digging Depth
4'10"
C: Maximum Cutting Height
23'07"
D: Maximum Dumping Height
16'10”
E: Minimum Swing Radius
8’10"
Overall Dimensions with Rail Gear
A: Overall Length
22’03”
B: Overall Height
8’03"
C: Undercarriage Width
7'03"
D: Rear-End Length/Swing Radius
5'03"
E: Distance Between Idler/Sprocket Center Line 7'06""
7'06"
F: Undercarriage Length
9’06"
H: Cab Height
8'03"
G: Counterweight Clearance
28"
I: Ground Clearance
14"
J: Upperstructure Width
7'05"
K: Gauge Width
5’09"
L: Track Width (18” Pads) 18”"
18”
