- Patented High-Rail System allowing for speeds in excess of 20 mph
- 1.6 mph (low) / 2.5 (high) mph Off-Track Speed
- Internal Wet Disk Axle Braking System
- Life-me JD Link Telematics Subscription
- 500 hr Engine Service Intervals
- Serviceable by the Nationwide John Deere Dealer Network
- Low High-Rail Center of Gravity
Key Features
Specifications
STANDARD SPECIFICATIONS
- Isuzu 6HK1XASA02 7.8 L Engine
- EPA Final Tier 4/EU Stage IV
- In Cylinder Par&culate Burning, No DPF
- 186 kW (249 hp) at 1,900 rpm
- 6 Cylinder 7.8 L (475 cu. in.)
- 3 Variable-Displacement Hyd Pumps
- 235 L/m (62 gpm) x 2 Max Hyd Flow
- 211 L/m (56 gpm) x 1
- 24 Volt – 50 Amp Alternator
RAILAVATOR SPECIFICATIONS
- Hydraulically Powered High Rail Gear
- In-Cab Touch Screen Control Center Beacon
- 24V to 12V Converter
- Pattern Changer
- Battery Disconnect
- Front & Rear Auxiliary Lights
- Fire Extinguisher
- Remote Oil Drain
- Window Guards
- Camera System (for rail mounting)
- Nonmetallic SoC Pads
- 24″ Rail Wheels
- HD-1 Axles With Oversized Bearings
Accessories
- Ultra-Life HD-2 Axles
- 28″ Wheel Upgrade
- Multi-Circuit Hydraulic Package
- High-Flow Auxiliary Package
- Cart Tow Hitch with Hydraulic Cart Brake
- Circuit Boom Anti-DriC Valve
- Insulated High-Rail
- Lower Tool Boxes
- Additional Hand Rails
Dimensions and Weights
DIMENSIONS AND WEIGHTS
Operating Weight
90,720 lbs
Arm Digging Force (10'02")
SAE 31,020 lbs
ISO 32,370 lbs Bucket
Digging Force
SAE 39,340 lbs
ISO 45,410 lbs

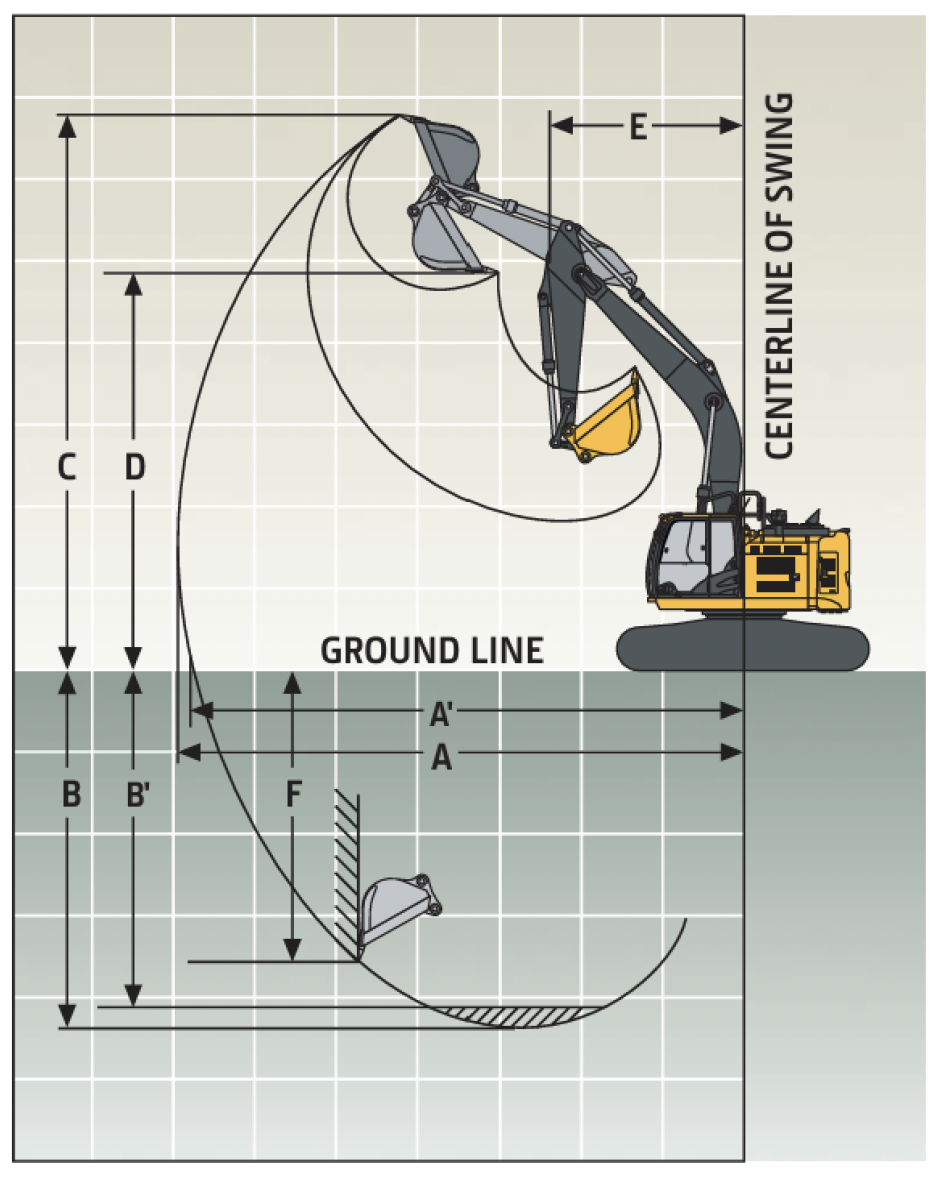

Dimensions - 10'02" Arm
A: Maximum Reach
35'09"
A1: Maximum Reach at Ground Level
34'11"
B: Maximum Digging Depth
22'08"
B1: Max Digging Depth 8' Flat Bo?om
22'01"
C: Maximum CuIng Height
37'05"
D: Maximum Dumping Height
27'06”
E: Minimum Swing Radius
11'02"
F: Maximum Ver&cal Wall
20'02"

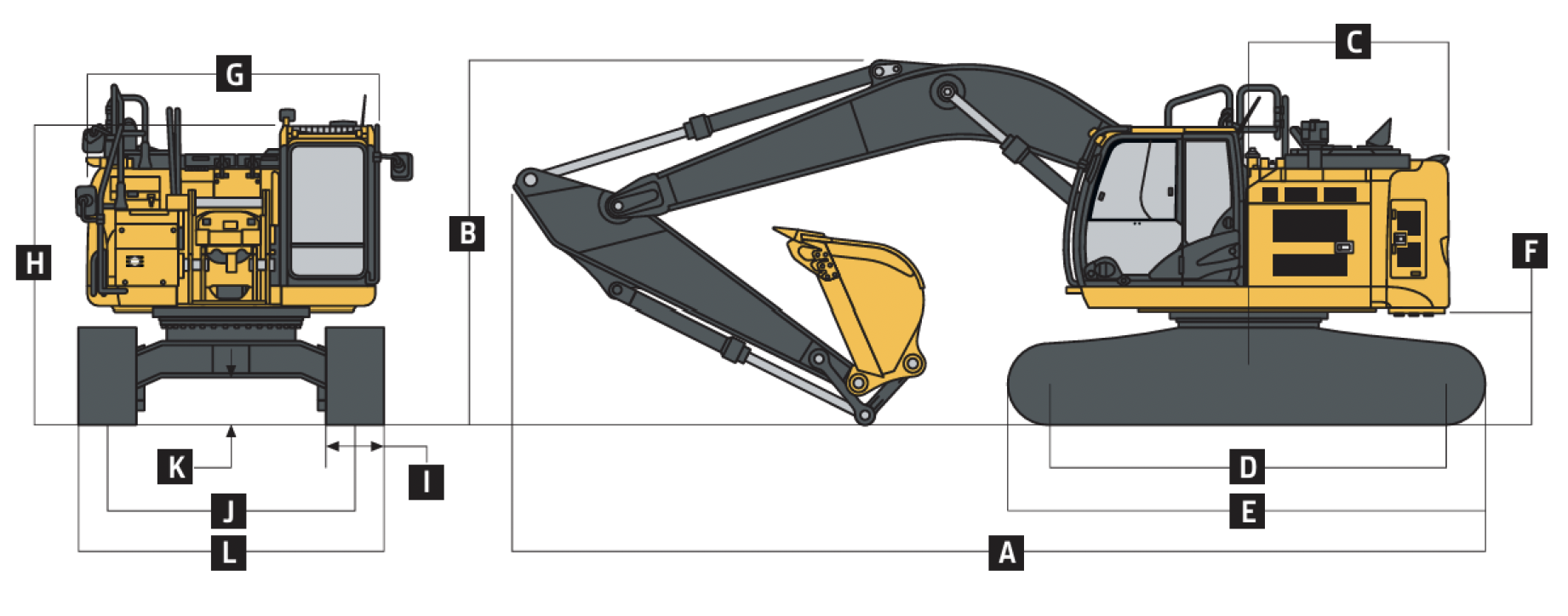

Overall Dimensions with Rail Gear
A: Overall Length (without rail gear)
32'08”
B: Overall Height
11'00"
C: Tail Swing Radius
6'10"
D: Distance Between Idler/Sprocket CL
13'03"
E: Undercarriage Length
16'02"
F: Counterweight Clearance
3'10"
G: Upperstructure Width
10'
H: Cab Height
10'07"
I: Track Width
32"
J: Gauge Width
8'06"
K: Ground Clearance (without rail gear)
20"
L: Overall Width (32" Pads)
11’01”
Refill Capabilities
Fuel Tank 100 gal
Diesel Exhaust Fluid 4.2 gal
Cooling System 12.7 gal
Engine Oil with Filter 12.7 gal
Hydraulic Tank 42 gal
Hydraulic System 87 gal
Swing Drive 12.6 qt
Gearbox
Propel (each) 11.6 qt
Pump Drive 12.4 qt
