- Patented High-Rail System allows speeds in excess of 20 mph
- Hydraulically Expandable Undercarriage to allow straddling of track
- 1.6 mph (low) /2.6 (high) mph Off-Track Speed
- Spring Applied/Hydraulically released dry shoe brakes
- 500 hr Engine Service Intervals
- Low High-Rail Center of Gravity
- Serviceable by the Natonwide John Deere Dealer Network
Key Features
Specifications
Standard Specifications
- Yanmar 4TNV88C
- EPA Final Tier 4/EU Stage IV
- 26.8 kW (35.9 hp) at 2,400 rpm
- 4 Cylinder 2.19 L (134 cu. in.)
- Variable-Displacement Hyd Pump
- 120 L/m (31.7 gpm) Max Hyd Flow
- 12 Volt – 55 Amp Alternator
RAILAVATOR Specifications
- Hydraulically Powered High Rail Gear
- 12″ Rail Wheels
- In-Cab Touch Screen Control Center
- Beacon
- Pattern Changer
- Battery Disconnect
- Front & Rear Auxiliary Lights
- Fire Extinguisher
- Manual Quick Coupler
Dimensions and Weights
Top Level Specs
Operating Weight
14,800 lbs (without attachments)
Arm Digging Force (5'07")
ISO 4,718 lbs
Bucket Digging Force
ISO 8,267 lbs

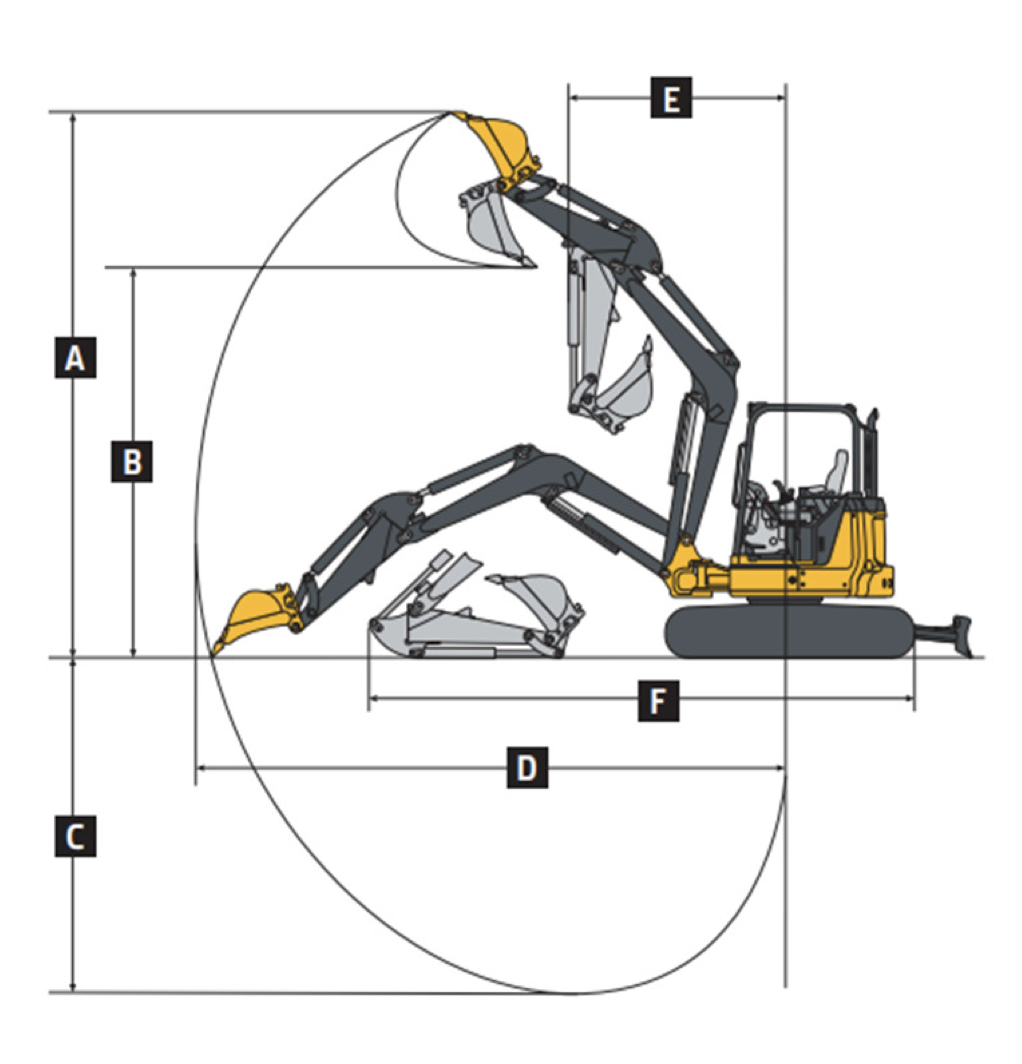

Dimensions - 5’07" Arm
A: Maximum Cutting Height
19'08"
B: Maximum Dumping Height
14'02"
C: Maximum Digging Depth
12'07"
D: Maximum Digging Reach
20'06
E: Minimum Front Swing Radius
07'07
F: Transport Length
18'01

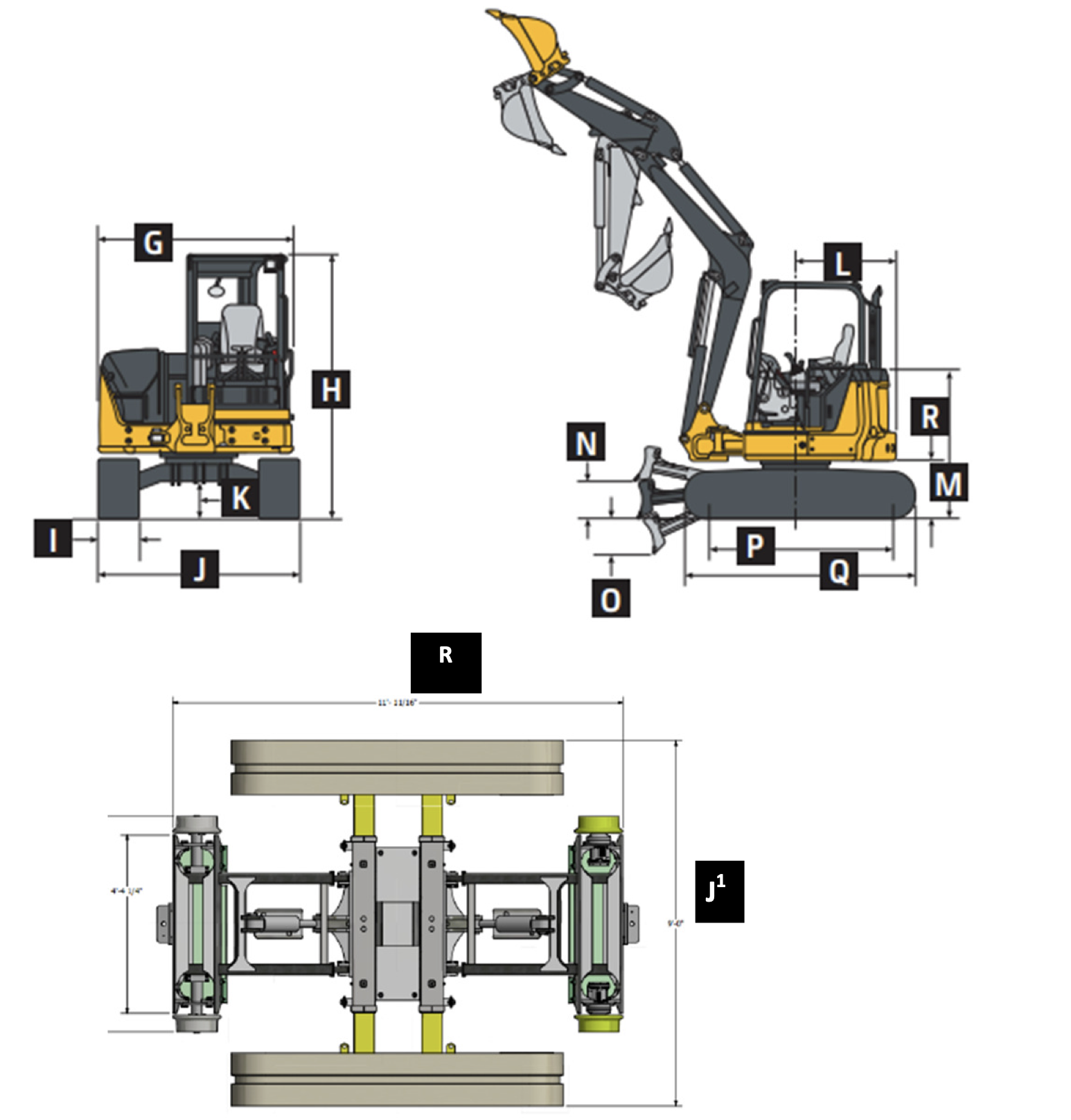

Overall Dimensions with Rail Gear
G: Upper-structure Width
19'08"
H: Overall Height
14'02
J: Undercarriage Width (narrowed)
12'07"
J1 : Undercarriage Width (wide)
20'06"
K: Ground Clearance
07'07"
L: Tail Swing Radius
18'01"
M: Engine Cover Height
19'08"
P: Sprocket Center to Idler Center
14'02"
Q: Track Length
12'07"
R: Overall Length with High-Rail
20'06"
Refill Capabilities
Fuel Tank 18.5 gal
Cooling System 5.3 qt
Engine Oil with Filter 9.1 qt
Hydraulic Tank 14.8 gal
